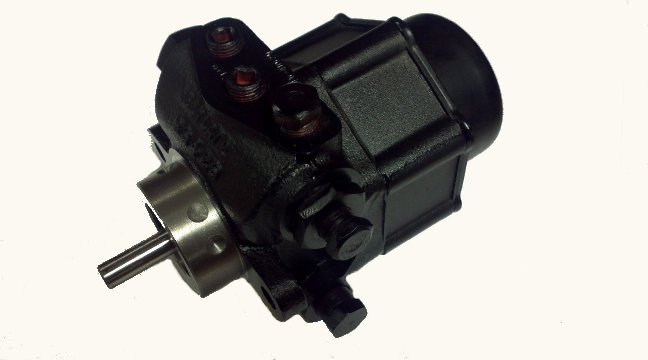

V SERIES FUEL OIL PUMPS
Webster V Series
fuel units are designed to meet the high delivery requirements of commercial
and industrial systems, with a minimum of mechanical and hydraulic noise.
Available in both single and two stage models. Single stage units provide a
firing rate up to 260 gph (980 1/hr) at up to 10' hg (254 mm) inlet vacuum. Two
stage firing rates are as high as 200 gph (760 1/hr) at up to 15' hg (381
mm) inlet vacuum. Operational integral regulating valves are factory pre-set
for 100 and 300 psi (6.9 and 20.7 bar) operation and can be easily adjusted
in the field for specific system requirements. UL listed.
